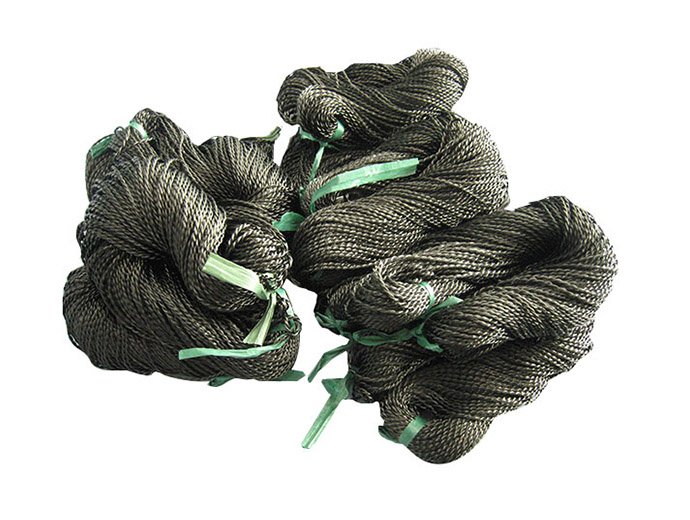

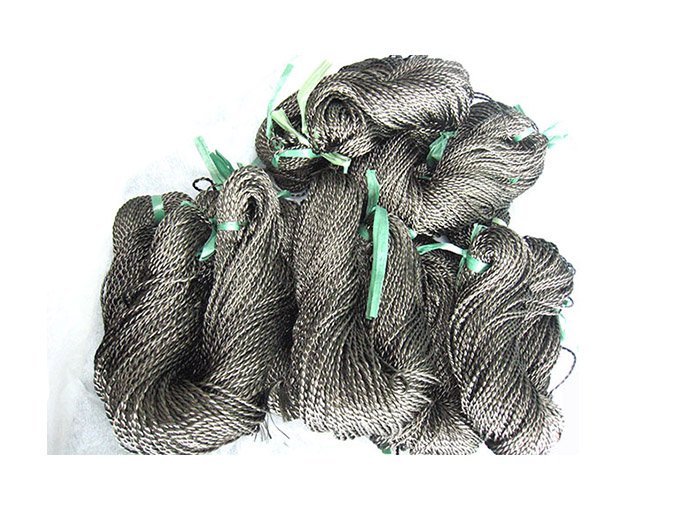

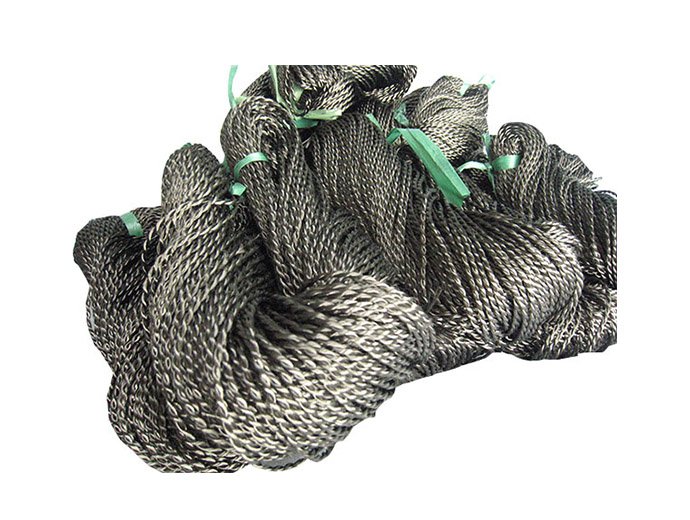

The product is treated and woven with the special process by adopting the Pan based carbon fiber as the raw material.It is high in strength, non-melting under high temperature, excellent thermal stability, light in weight and corrosion proof.
Quality material for binding of thermal-protective coating charcoal felt of vacuum furnace.
Grade | JP-CR | |
Density: g/cm3 | 1.74—1.79 | |
Carbon content: % | ≥99 | |
Thermal conductivity (W/m·k) | 0.10—0.14 | |
Resistivity:（Ωmm2/m） | 20—25 | |
Tensile strength:（MPa） | 450—500 | |
Elongation % | 1.0 | |
Ash: % | ≤1.0 | |
Process temperature ℃ | 2000 | |
Operation Temperature | Air ℃ | ≤400 |
Vacuum ℃ | ≤2200 | |
Inert gas ℃ | ≤3200 | |
Standard size(mm) | Φ2，Φ3，Φ4，Φ6 x 200M | |
