Carbon-carbon composite(C/C) is a light-weight, high-strength composite material capable of withstanding temperatures over 3000°C in many environments.
It is made of Pan-based carbon fiber through a special process like composition, curing, sedimentation, purification treatment.
Applications include: Protective liners and melt covers; Solar technology; Vacuum metallurgy; Non-oxide ceramic production; Chemical industry new material.
Grade | JP-CC | |
Bulk Density (g/cm3) | 1.45—1.75 | |
Thermal Conductivity(W/m·k) | 0.05—0.10 | |
Ash（%） | ≤0.05% | |
Folding strength （MPa） | 200—300 | |
Tensile strength （MPa） | 250—380 | |
Elastic modulus （MPa） | 80 | |
Process temperature(℃) | 2400 | |
Operation Temperature(℃) | Atmosphere | ≤400 |
Vacuum | ≤2200 | |
Inert Gas | ≤3400 | |

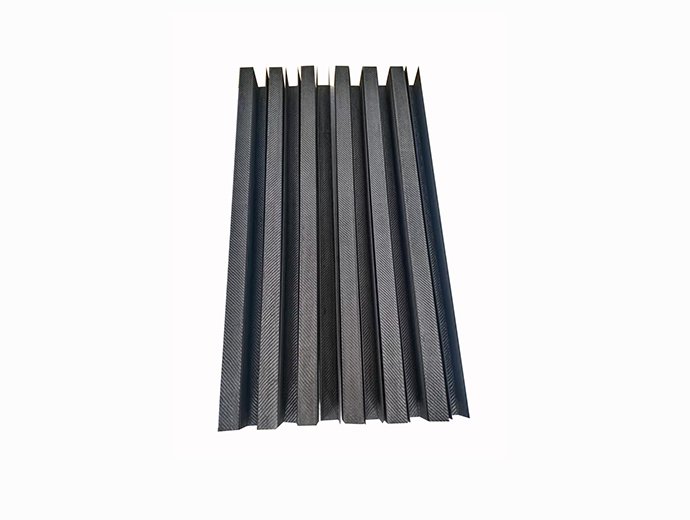

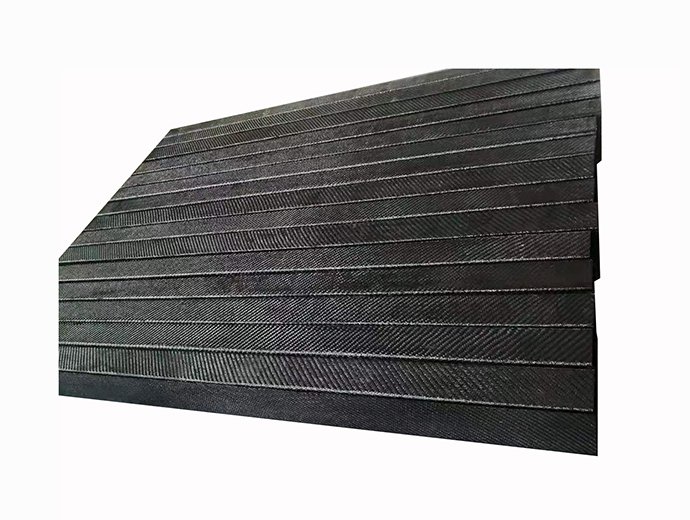

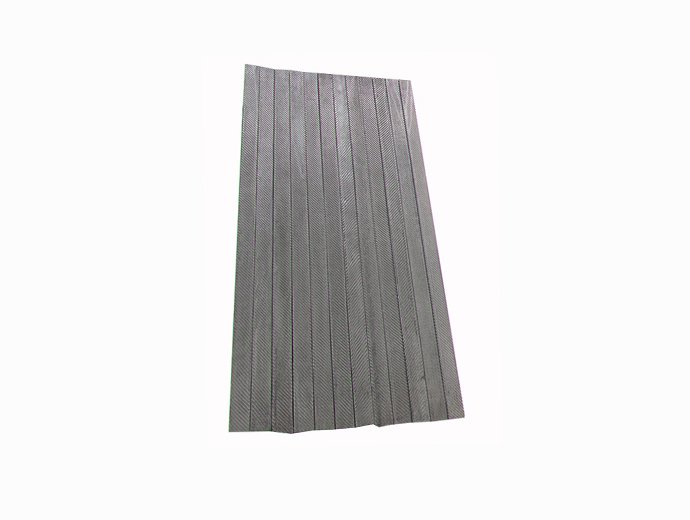

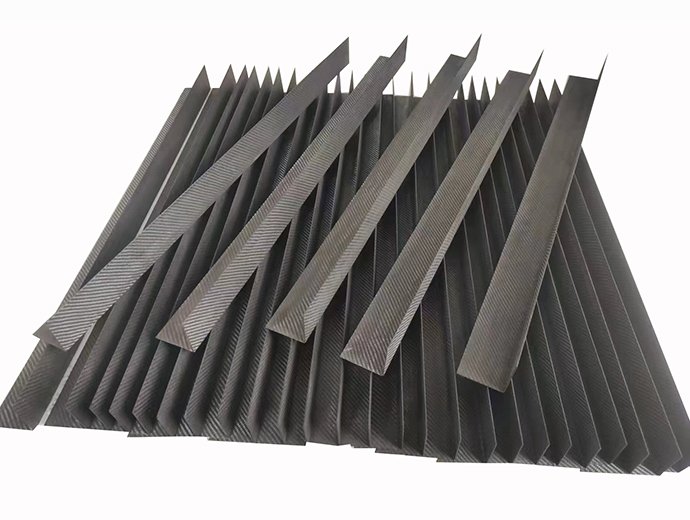

Standard Size(mm) | Plate 1000*1000*(1—40) “U”60*40*60/80*40*80—T1.5 “L”65*65—T1.5—L1000 Dia(200—1500)*T(30—120)*H(300—2000) | |
